145 TIMES MAŞALLAH FOR THE FLOW METER!!

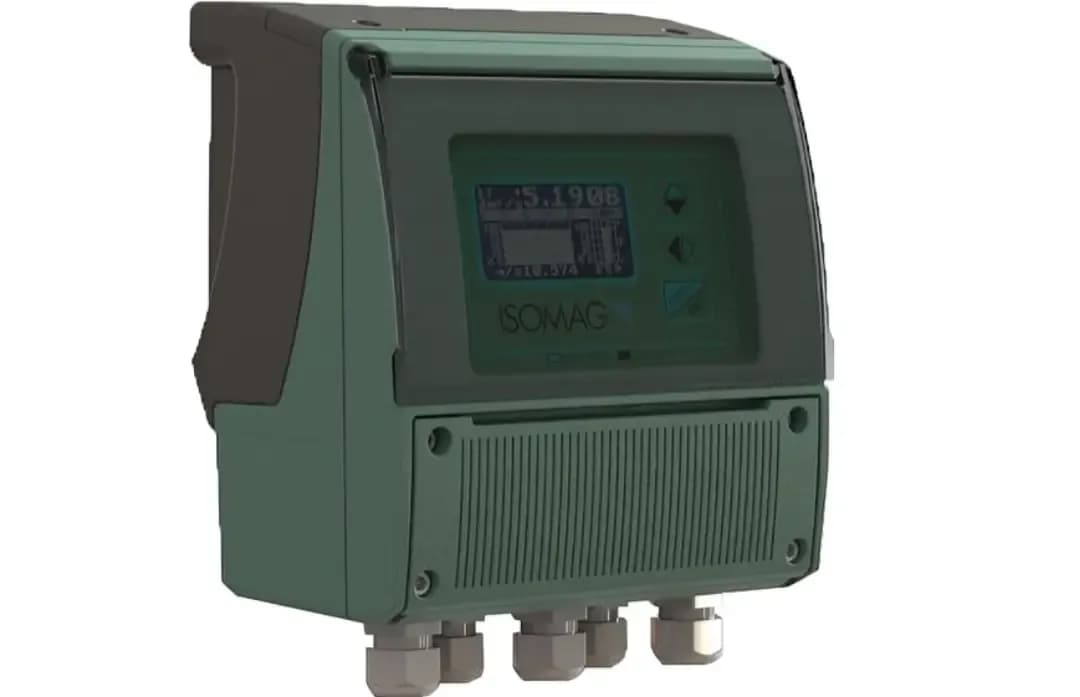

Since 1958, ISOIL Industria has been advancing its production capacity with confidence, making significant strides in electromagnetic flow meters, energy meters, ultrasonic flow meters, and industrial automation systems. The MV145, part of the FLOWIZ family, is a new generation converter that can be integrated into any flanged or non-flanged ISOMAG flow meter body up to DN1800 and can be powered by lithium and/or alkaline batteries.

Innovative Features and High Performance

The MV145 can operate, manage, and record up to two pressure or temperature sensors. The batteries are easily replaceable without interrupting the measurement. Connected to the MS2500 flow sensor (up to DN1000), the MV145 complies with the 2014/32/EU MID, Annex III MI-001 European directive. The converter includes an internal recorder with 4 GByte storage capacity, ensuring years of recording flow and pressure data. It can be programmed via the keyboard and display or through a PC using a mini USB cable with MCP software.

Technical Specifications

• Minimum liquid conductivity: 20 µS/cm
• Accuracy: ± 0.4% of the measured value, or ± 0.2% on request
• Repeatability: Better than ± 0.5%
• Analog output: 4-20 mA active or passive when battery powered
• RS485 output with Modbus protocol
• Housing material: Nylon or aluminum for the IP68 version

For detailed information, feel free to contact us.
