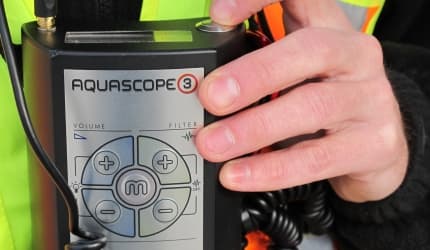

Aquascope 3 – Acoustic Floor Microphone

The GUTERMANN AQUASCOPE 3 is a high performance water leak detector designed for use in locating leaks in water mains, water services and residential or commercial properties. The acoustic floor microphone in this water leak detector amplifies the mechanical vibration that occurs when water in a pressurized system exits the pipe wall. With an electronic listening stick, magnet, tripod microphone and ground microphone, the operator can use this water leak detection kit to locate the leak location and then locate it under the road, soft ground, under concrete slab or walls.

You can contact Aykome Engineering for details.

Practical design and high portability:

The AQUASCOPE 3 acoustic ground microphone was designed by leak detection experts for leak detection operators. The AQUASCOPE 3 is the ultimate instrument even for long working days, with high-quality connectors, a lightweight yet robust amplifier enclosure, and cables designed to reduce tripping hazards. The amplifier belt allows the operator to wear the unit on their chest or waist. The universal headphone jack lets you work with your favorite headphones.

Simple and direct use:

• AQUASCOPE 3’s powerful built-in features are easy to use. The unique one-button design and simple menu navigation make the AQUASCOPE 3 the perfect leak detection tool for any field operator, regardless of leak detection experience. Filter settings are extremely user friendly. Experienced operators can find tricky leaks using an adjustable narrow bandwidth filter setting to suppress unwanted interference and background noise. The backlight function allows night work when needed.



High quality and maintenance free:

AQUASCOPE 3 uses high-performance sensor technology and the most durable components. The result is more amplification and higher sensitivity, with very clear noise that is class-leading in the industry. The robust design of all cables and connectors and the use of Double A batteries make the AQUASCOPE 3 a maintenance-free system with virtually no downtime and very low operating costs. A sturdy carrying case provides the AQUASCOPE 3 with adequate protection for daily use.

“Minimum Level Profiling” function:

While some acoustic devices give the user a flat “leakage value”, AQUASCOPE 3 allows the user to record a leakage value independent of passing traffic and other ambient sounds. This gives the leak officer valuable information in the investigation process. Minimum Level Profiling locks onto the lowest noise detected on each bore. The last eight readings are displayed to indicate whether the operator is moving towards or towards the leak. The leak is closest to the highest of all recorded minimum noise levels.

EQUIPMENT and ACCESSORIES

• 1 x Amplifier (Main Unit) – with waist belt

• 1 x Ground Microphone

• 1 x Cable (Main unit to microphone)

• 1 x Stereo Headphone


• 2 Year Warranty



Optional Accessories:

• Carrying Bag


• Aviator Type Quality Headphones



Meet the Economic and Practical Solution of Underground Leak Detection!

Gutermann brand Aquascope 3 model acoustic listening microphone, which produces high German technology, is a specially designed professional and very economical device that allows you to find water losses and leaks in the drinking water line by listening over the pipelines.

Continuing its production and R&D activities since 1948, Gutermann; With the AS3 model acoustic microphone, which is a highly sensitive device, it detects the point where the water leakage sound is highest by listening to the drinking water pipelines above ground.

With its special microphone structure with a large diaphragm and its main unit with a very high level of amplification, it allows to detect the lowest water loss – leakage sound very clearly even in large diameter pipes.

The final and definitive step is to listen to the underground with a powerful microphone. This microphone can listen to any noise with very high sensitivity. In this case the valves must be in good condition (no valve leakage) and the exact route of the pipe must be known to us. Because noise can come from anywhere like a river and we need to set up our device to hear our microphone right away. We can’t exactly find small leaks if you’re not on the pipe. If there are legal or illegal connections to the pipe, our microphone will understand the sound of people using water from the main pipe as a leaky leak.
