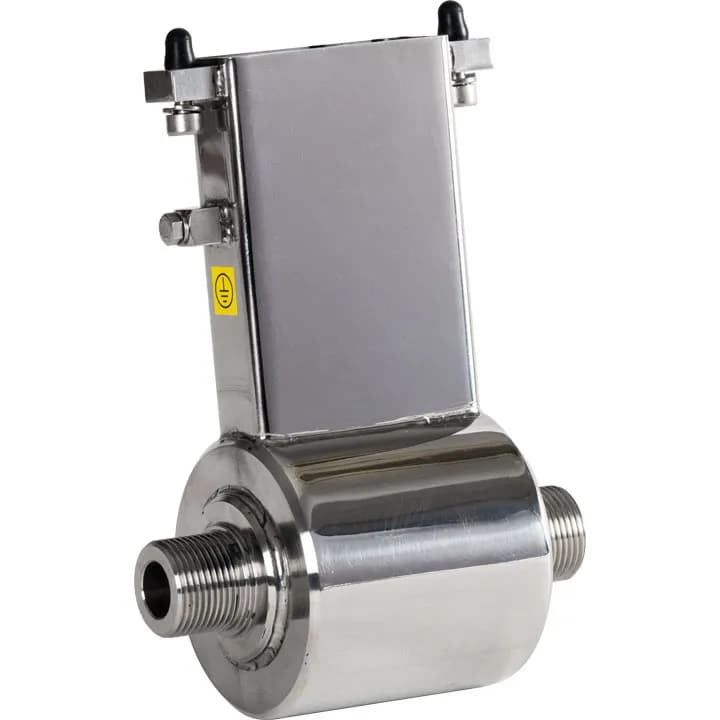

MS501 – Electromagnetic Micro-Flow Sensor with Stainless Steel Housing
The ISOMAG MS501 micro-flow sensor for flow meters is the smallest instrument in the series, with a wide range of applicability thanks to the variety of its attachments.
Flowmeter Standard Configurations
- Body material AISI 304
- Nominal pressure 1600 kPa
- Process attacks
- Gear UNI 338
- Threaded NTP
- Flanged UNI EN-1092-1 PN16
- Flanged ANSI 150
- Sanitary DIN 11851
- Clamps ISO 2852
- Clamps BS 4825
- SMS
- Version – protection class Compact IP67
- Connection material AISI 316
- Lining material PTFE
- Gasket material FPM
- Liquid temperature;
-20°C ÷ 100°C comp. (130°C with ML4F-1 only)
-20°C ÷ 130°C separated
- Vacuum resistance 20 Kpa (absolute) at 100°C
- Electrode material;
AISI 316 stainless steel
Hastelloy C.
platinum-rhodium
Titanium
Tantalum
