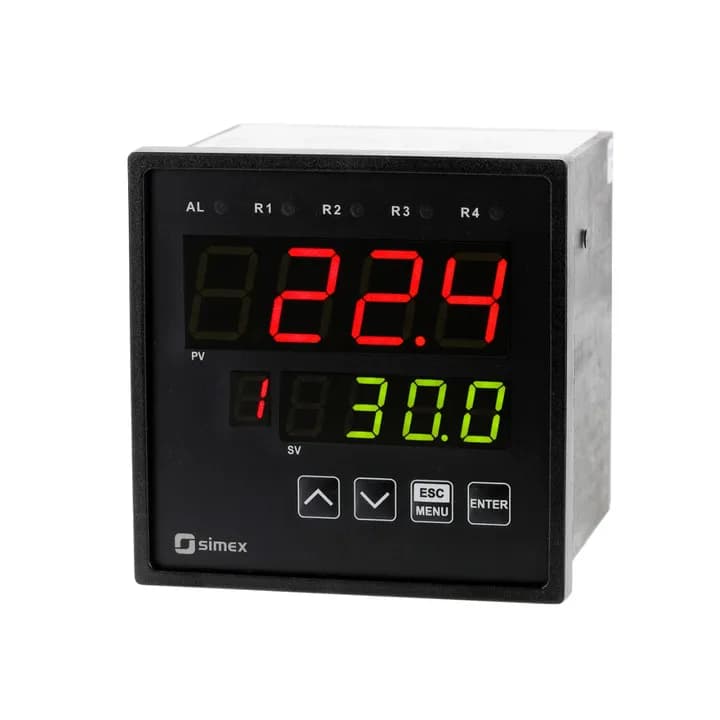

PUR-99 – PID Controller
Why Choose Us?
- Wide range of products and services that meet every need
- Free consultancy service to identify the right product
- Chance to have the right product at the most affordable price
- For more detailed information about the product and your demo requests, you can contact us through the following communication channels.
- Product Description
- General Specifications
- Technical Specifications
- Downloads
PUR-99 PID Controller is an advanced PID controller with auto-tuning function and two control loops (heating/cooling) powered by Fuzzy-Logic algorithm. Its main advantages are two sequential displays: the first shows the measured value, the second shows the programmed values. The device has a built-in REL, OC (SSR) or analog output according to customer choice: active current output, passive isolated current output or active voltage output, which can be used in the control process. The PUR-99 controller is equipped with a universal input, type: 0/4-20 mA, 0-10V, 0-150 mV, Pt 100/500/1000 or TC (K, S, J, T, N, R, B, E). Only one type of input is available during the measurement process. The cold junction of the thermocouple sensor is automatically compensated. RTD and TC inputs have fully linearized features. Thanks to the wide variety of characteristic curves (linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks), the controller can be used in various process control systems. The 24V DC / 100 mA output is designed to power measurement transducers and the RS-485 port enables data transmission in production process monitoring systems. The controller can be configured via the RS-485 communication port with the local keyboard or the free S-Config software.
You can contact Aykome Engineering for detailed information.
