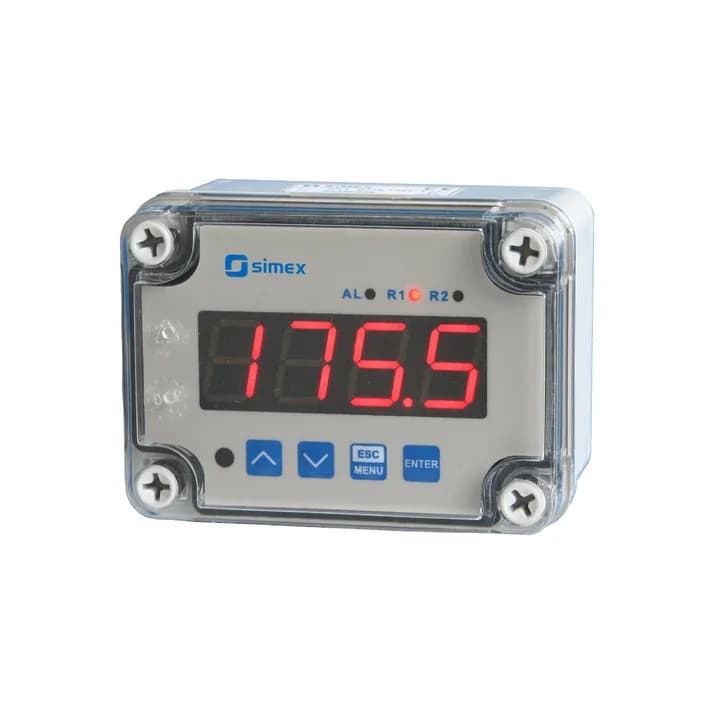

SRP-N118 – High Protection Meter
Why Choose Us?
- Wide range of products and services that meet every need
- Free consultancy service to identify the right product
- Chance to have the right product at the most affordable price
- For more detailed information about the product and your demo requests, you can contact us through the following communication channels.
- Product Description
- General Specifications
- Technical Specifications
- Downloads
The SRP-N118 high protection meter is designed to measure typical current or voltage signals. Readings are presented on a well-readable display with standard four-digit spacing. Thanks to its tight housing with a high (IP 67) protection class, this device is particularly suitable for operations in harsh environments. A wide variety of characteristic curves (linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks) allow the use of meters in various process control systems. The 24V DC / 100 mA output is designed to power measurement transducers and the RS-485 port enables data transmission in production process monitoring systems. The REL / OC control outputs can adjust the level of the measured signal and are controlled according to one or two threshold values. In addition, the meter can be equipped with analog outputs according to customer choice: active current output, passive isolated current output or active voltage output. The meter can be configured using the remote control or via the RS-485 communication port with the free S-Config software without the need to open the case.
You can contact Aykome Engineering for detailed information.
