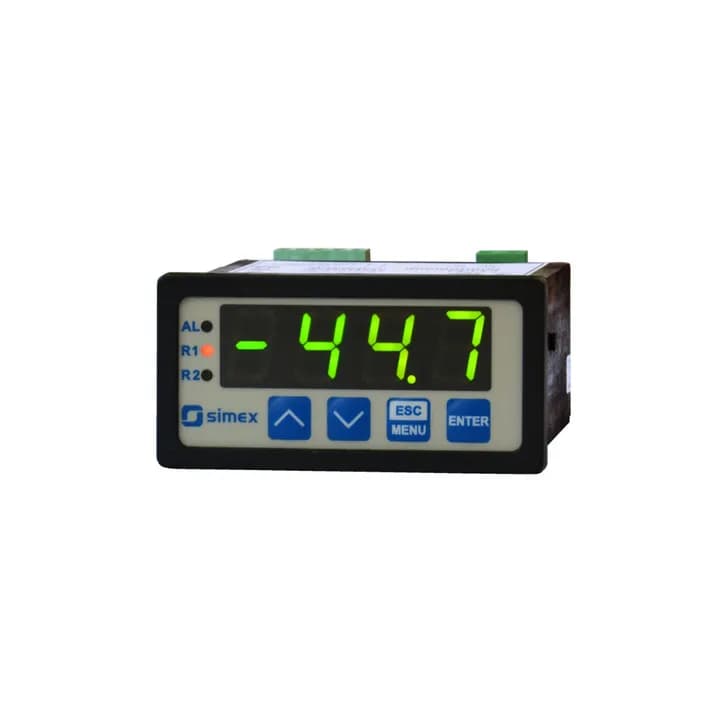

SRT-73 – Temperature Measurement Indicator
Why Choose Us?
- Wide range of products and services that meet every need
- Free consultancy service to identify the right product
- Chance to have the right product at the most affordable price
- For more detailed information about the product and your demo requests, you can contact us through the following communication channels.
- Product Description
- General Specifications
- Technical Specifications
- Downloads
The temperature measurement indicator SRT-73 is designed for temperature measurements. The device is equipped with a resistance type Pt100/500/1000 input or a thermocouple input that can work with K, S, J, T, N, R, B and E type thermocouples. Inputs have fully linearized properties.
The device with thermocouple input has an additional measuring range (-10 ÷ 90 mV) mainly for diagnosis of measuring circuits. The 24V DC / 100 mA output is designed to power measurement transducers and the RS-485 port enables data transmission in production process monitoring systems. The REL / OC control outputs can adjust the level of the measured signal and are controlled according to one or two threshold values. The meter can be configured via the RS-485 communication port with the local keyboard or the free S-Config software.
You can contact Aykome Engineering for detailed information.
