SUR-W410 – Large Universal Counter
Why Choose Us?
- Wide range of products and services that meet every need
- Free consultancy service to identify the right product
- Chance to have the right product at the most affordable price
- For more detailed information about the product and your demo requests, you can contact us through the following communication channels.
- Product Description
- General Specifications
- Technical Specifications
- Downloads

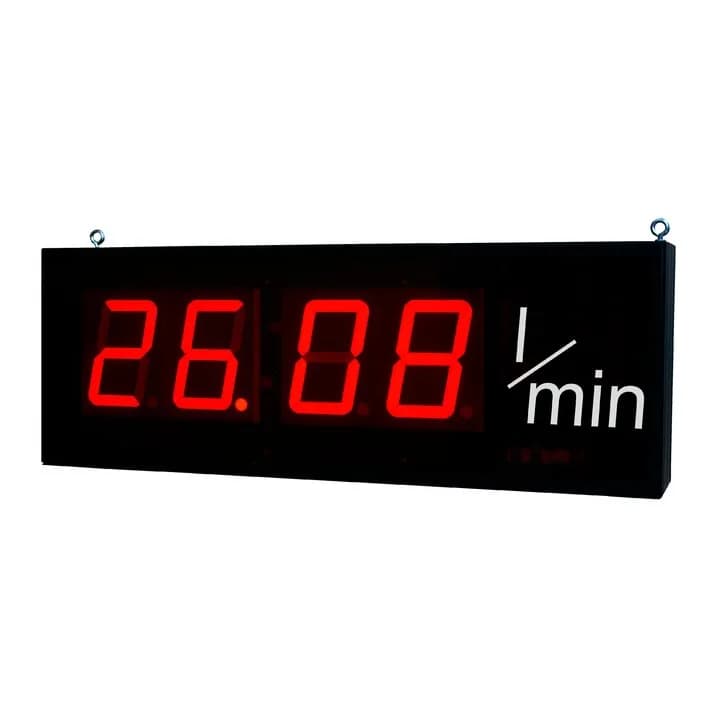

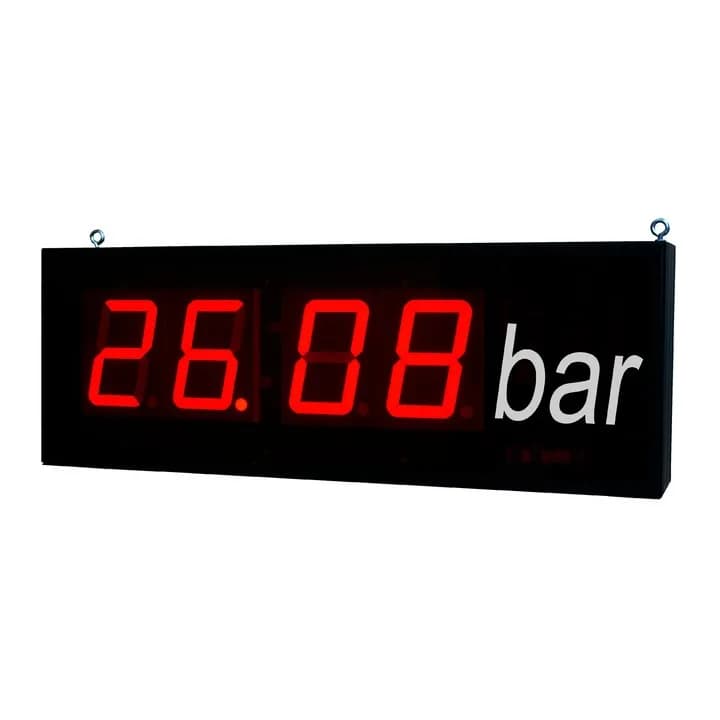

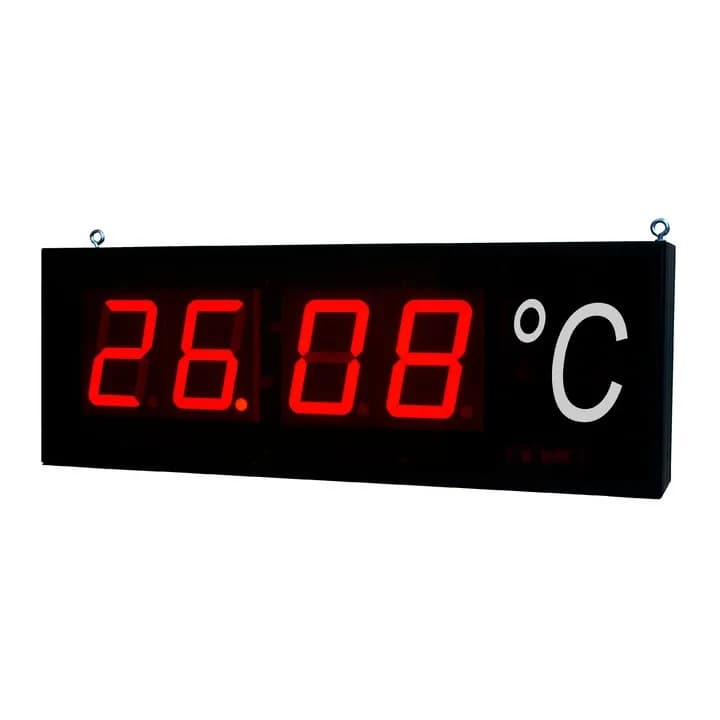

The SUR-W410 large universal counter is equipped with a single universal input, type: 0/4-20 mA, 0-10V, 0-150 mV, Pt 100/500/1000 or TC (K, S, J, T, N, R, B, E). Only one type of input is available during the measurement process. Due to the wide variety of characteristic curves (linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks), meters can be used in various process control systems. As the main advantage, this device has a large LED display with a height of 100 mm, the brightness of which can be adjusted in 8 steps. The device has 4 buttons used for master preset programming. The keyboard is mounted under a transparent cover to achieve a high level of protection. An IR sensor is mounted to allow the user to change presets without opening the cover. The 24V DC / 100 mA output is designed to power measurement transducers and the RS-485 port enables data transmission in production process monitoring systems. The REL / OC control outputs can adjust the level of the measured signal and are controlled according to one or two threshold values. In addition, the meter can be equipped with analog outputs according to customer choice: active current output, passive isolated current output or active voltage output. The meter can be configured using the remote control or via the RS-485 communication port with the free S-Config software without the need to open the case.
You can contact Aykome Engineering for detailed information.
