SWE-73-A – Digital Panel Display
Why Choose Us?
- Wide range of products and services that meet every need
- Free consultancy service to identify the right product
- Chance to have the right product at the most affordable price
- For more detailed information about the product and your demo requests, you can contact us through the following communication channels.
- Product Description
- General Specifications
- Technical Specifications
- Downloads

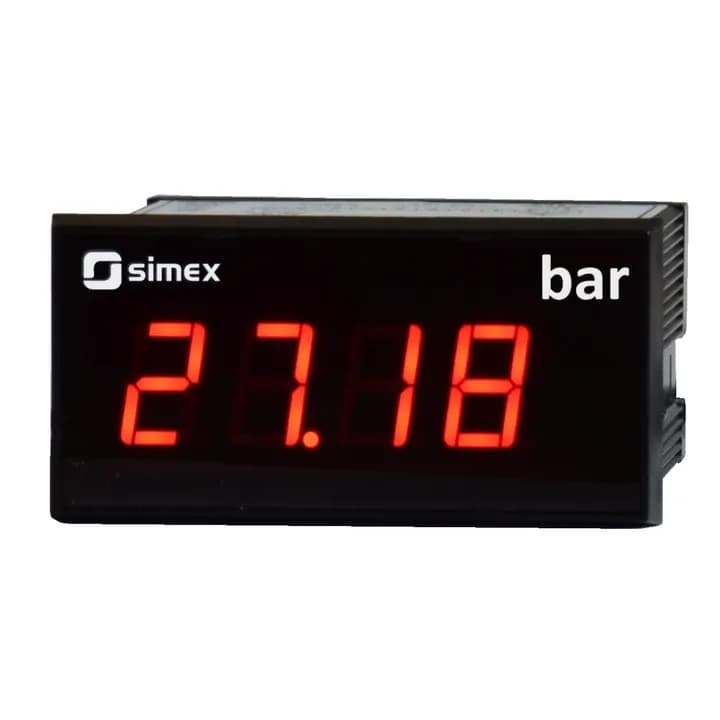

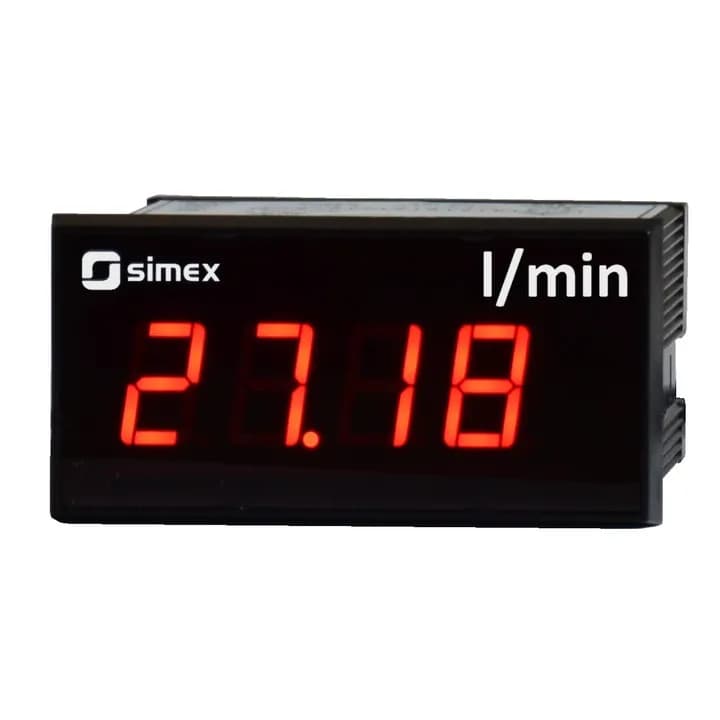

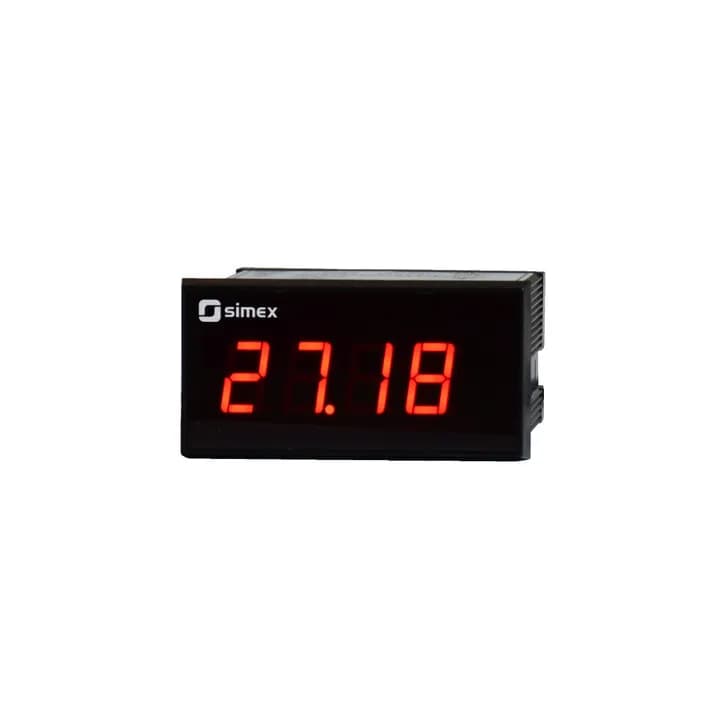

The low-cost SWE-73-A digital panel display is a small, simple digital panel indicator equipped with two measurement inputs: a current input (0-20/4-20mA) and a voltage input (0-5/1-5/0). ) -10/2-10V). The current input also has an overcurrent protection circuit that protects the standard resistor. Active input selection is performed by the software and the selected input can be changed at any time. In addition, the SWE-73-A allows the user to select a variety of conversion features: linear, square, square root, and user-defined (max. 20 point length). The 16-bit A/D converters used in them provide very high stability and measurement accuracy. The RS-485 interface facilitates the establishment of measurement networks in production process monitoring systems, as well as the use of indicators as intelligent, programmable, digital converters of input signals for computer systems. The meter can be configured with IR remote control or free S-Config software via RS-485 communication port. The configuration of the device can also be programmed according to the customer’s order.
You can contact Aykome Engineering for detailed information.
