SWE-94-U – Low Cost Meter
Why Choose Us?
- Wide range of products and services that meet every need
- Free consultancy service to identify the right product
- Chance to have the right product at the most affordable price
- For more detailed information about the product and your demo requests, you can contact us through the following communication channels.
- Product Description
- General Specifications
- Technical Specifications
- Downloads

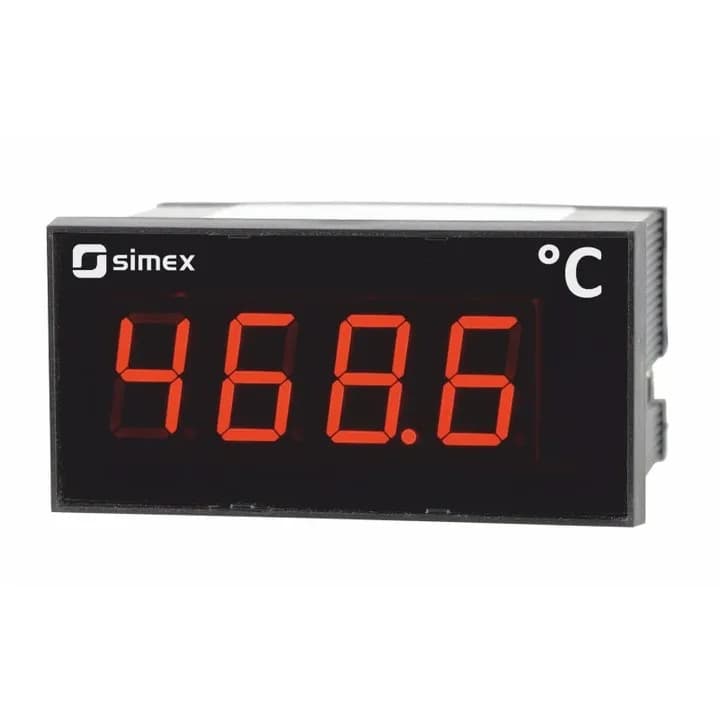

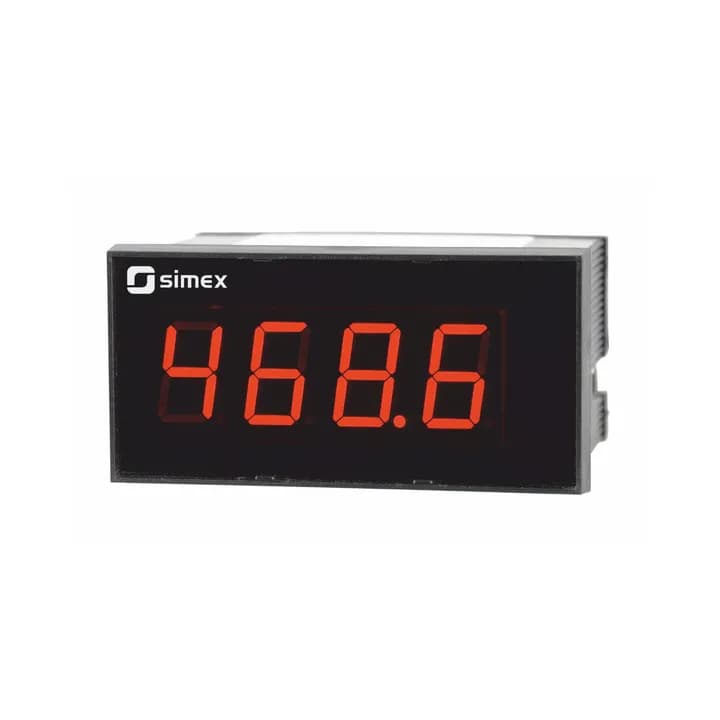

The SWE-94-U low cost meter is equipped with one universal input: 0/4-20 mA, 0-10V, 0-150 mV, RTD (Pt 100/500/1000) or thermocouple (K, S, J, T, N, R, B, E). The temperature of the cold ends is automatically compensated. RTD and TC inputs are fully linearized. Only one login is allowed at a time. The SWE-94-U allows the user to select a characteristic conversion of various types: linear, square, square root, user-defined. The device is equipped with RS-485 / Modbus RTU communication interface. It enables data transmission in any monitoring system equipped with RS-485, Modbus RTU protocol over more communication interfaces. The meter can be ordered in 3 power supply versions. The meter can be configured with IR remote control or free S-Config software via RS-485 communication port.
