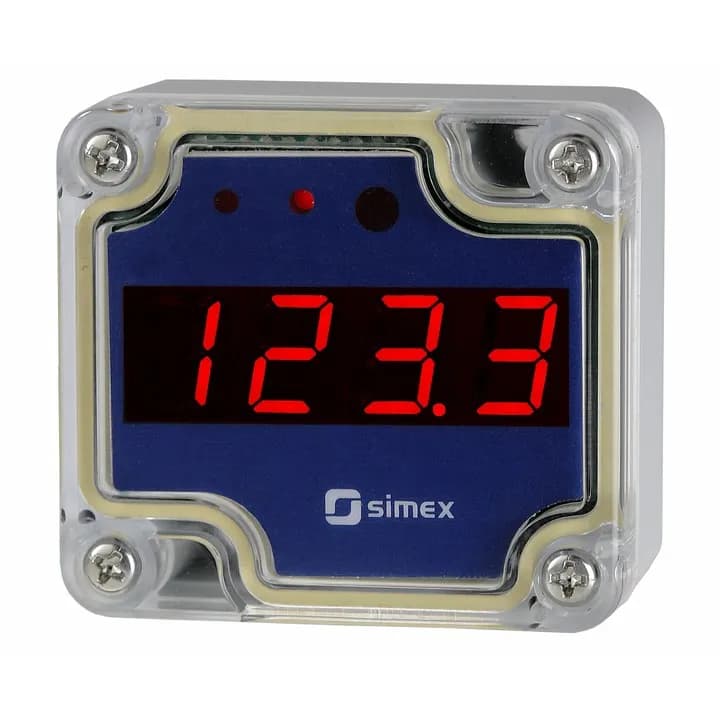

SWE-N55L – Simple Digital Display
Why Choose Us?
- Wide range of products and services that meet every need
- Free consultancy service to identify the right product
- Chance to have the right product at the most affordable price
- For more detailed information about the product and your demo requests, you can contact us through the following communication channels.
- Product Description
- General Specifications
- Technical Specifications
- Downloads
The SWE-N55L simple digital display is a simple and cost-effective display with a single 4-20 mA current input that powers the instrument. The measurement input is equipped with safety circuits that protect the internal electronics against overload. The device has possibilities to recalculate the measured current according to several predefined transfer functions (linear, square, square root) or fully definable user characteristics (max. 20 points). The result is displayed on the 4-digit red LED display. The device can be equipped with an optional relay (LED signaling on the front panel). Due to user safety requirements, this output can operate the bulb lamp as well as the buzzer, but should not be used for control purposes. The device can be configured using the IR remote control (signal indicated by the additional LED when the input current is higher than 10 mA).
Please contact Aykome Engineering for detailed information.
